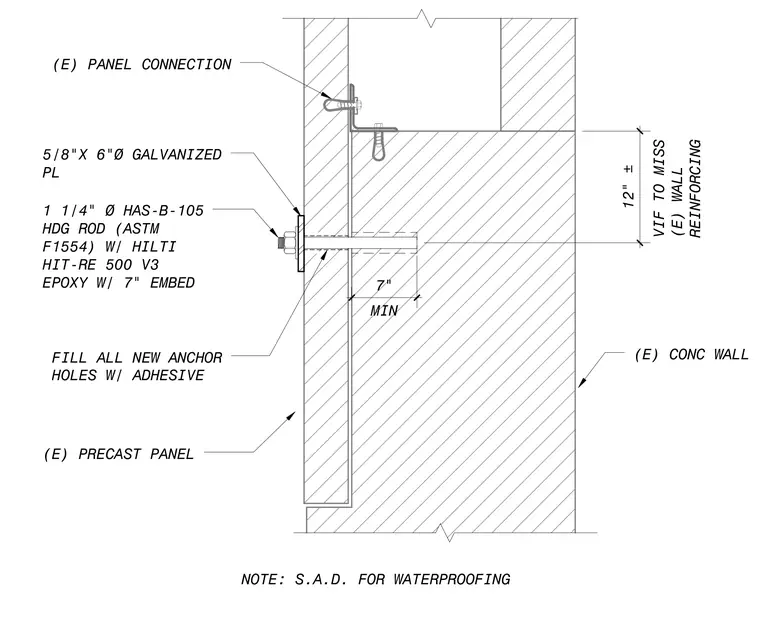

An existing precast concrete panel is secured to an existing concrete wall using a five-eighths inch by six-inch galvanized plate and a one-and-one-quarter-inch diameter hot-dip galvanized ASTM F1554 HAS-B-105 threaded rod. The threaded rod is embedded seven inches into the existing concrete wall with Hilti HIT-RE 500 V3 epoxy. The twelve-inch dimension is verified in the field to miss existing wall reinforcing. All new anchor holes are filled with adhesive, and waterproofing is applied per site-specific directives.
(E) PRECAST PANEL 12" ± 1 1/4" Ø HAS-B-105 HDG ROD (ASTM F1554) W/ HILTI HIT-RE 500 V3 EPOXY W/ 7" EMBED (E) PANEL CONNECTION MIN 7" 5/8"X 6"Ø GALVANIZED PL (E) CONC WALL VIF TO MISS (E) WALL REINFORCING NOTE: S.A.D. FOR WATERPROOFING FILL ALL NEW ANCHOR HOLES W/ ADHESIVE
