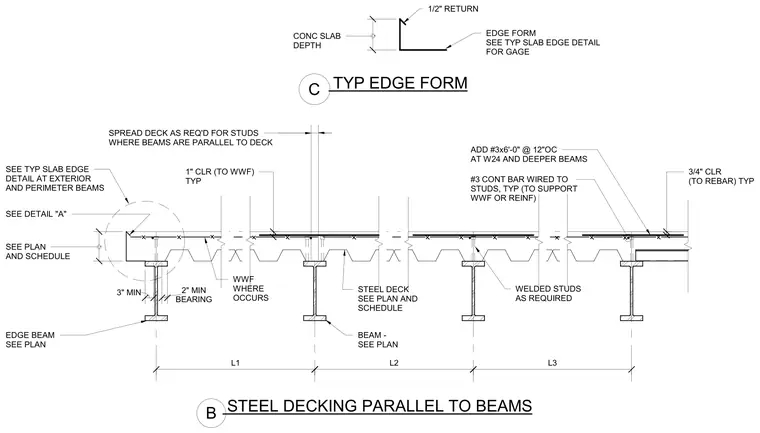

Steel decking is installed parallel to supporting steel beams with a reinforced concrete slab above. Welded studs are attached through the steel deck to the beams as required, with additional number three bars at six-foot lengths spaced at twelve inches on center for W24 and deeper beams. A continuous number three bar is wired to the studs to support welded wire fabric or reinforcement. Minimum bearing is provided at the perimeter edge beam with an edge form and specified concrete clearances.
ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS STEEL DECKING PARALLEL TO BEAMS SPREAD DECK AS REQ'D FOR STUDS WHERE BEAMS ARE PARALLEL TO DECK STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) EDGE BEAM SEE PLAN WWF WHERE OCCURS BEAM - SEE PLAN 1" CLR (TO WWF) TYP CONC SLAB DEPTH 1/2" RETURN SEE DETAIL "A" SEE TYP SLAB EDGE DETAIL AT EXTERIOR AND PERIMETER BEAMS TYP EDGE FORM C L1 L2 L3 . 3" MIN BEARING 2" MIN SEE PLAN AND SCHEDULE . 3/4" CLR (TO REBAR) TYP . B EDGE FORM SEE TYP SLAB EDGE DETAIL FOR GAGE .
