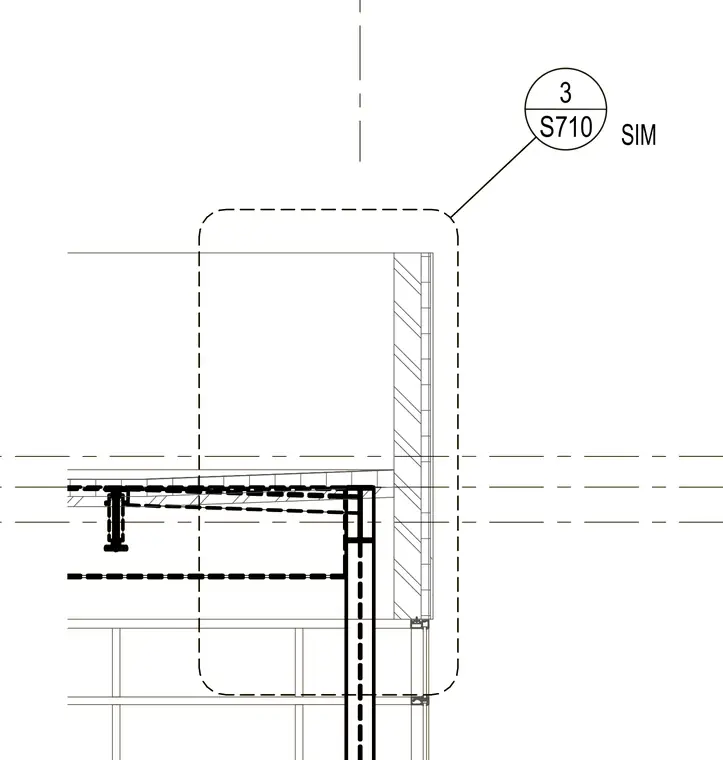

This drawing captures a structural intersection between floor framing and an exterior wall assembly. The detail shows a beam supporting a floor deck adjacent to a vertical wall element, indicated with a symmetrical reference marker. Dashed lines outline alignment planes and grid intersections across the assembly. The view focuses on the framing relationship without visible plate, bolt, or weld callouts.
