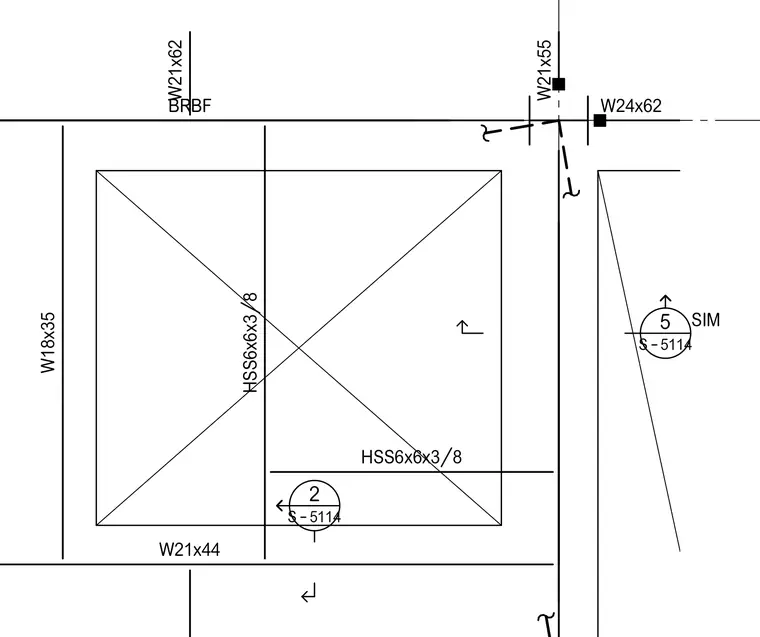

This structural connection detail features a buckling-restrained braced frame assembly constructed with wide flange steel members including W21x62, W21x55, W21x44, W18x35, and W24x62 shapes. Hollow structural section members designated as HSS6x6x3/8 frame into the system. Reference callouts point to related details on sheet S-5114.
W21x44 W18x35 W21x62 W21x55 BRBF W24x62 HSS6x6x3/8 HSS6x6x3/8 5 S-5114 SIM 2 S-5114
