The subgrade is prepared per the soils report and specifications, topped with a layer of clean free-draining material. A fifteen-mil visqueen type moisture barrier is installed over the subgrade, followed by a two-inch layer of clean sand. The concrete slab-on-grade is placed per plan with reinforcement located at the mid-depth of the slab.

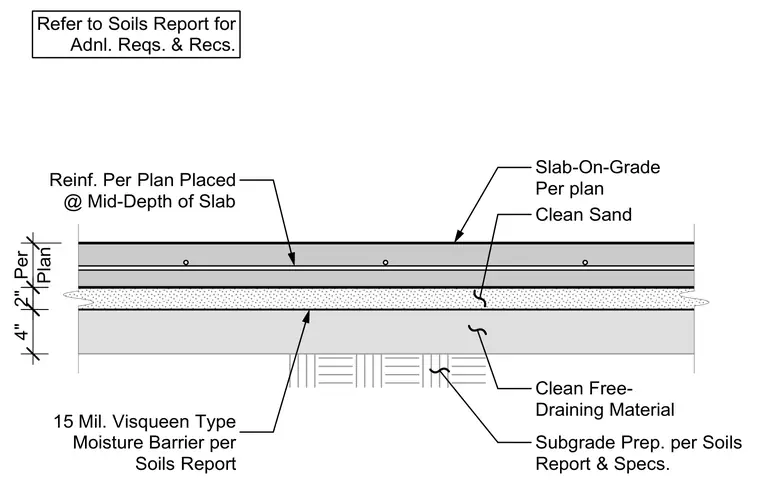

Subgrade Prep. per Soils Report & Specs. Clean Free- Draining Material 15 Mil. Visqueen Type Moisture Barrier per Soils Report Slab-On-Grade Per plan Reinf. Per Plan Placed @ Mid-Depth of Slab Clean Sand Refer to Soils Report for Adnl. Req s. & Recs. 2" 4" Per Plan
