Structural · S-2NXPX

Hanger Rod to Landing Connection

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Stairs Arches Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

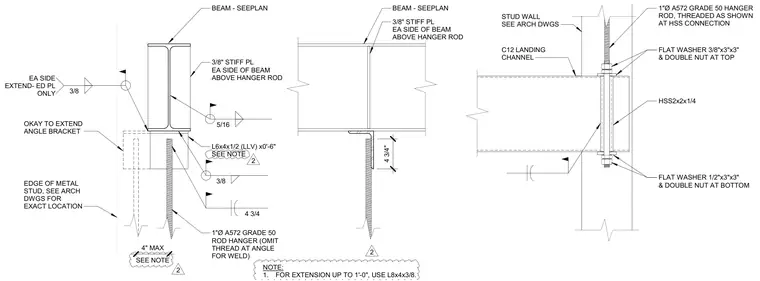

A 1-inch diameter ASTM A572 Grade 50 hanger rod connects to the underside of a structural steel beam using an L6x4x1/2 angle bracket welded with a three-eighths-inch fillet weld, with thread omitted at the angle for welding and three-eighths-inch stiffener plates on each side of the beam web above the hanger rod. For extensions up to 1 foot 0 inches, an L8x4x3/8 angle is used per the drawing notes. At the lower landing connection, a 1-inch diameter ASTM A572 Grade 50 hanger rod passes through a C12 landing channel and an HSS2x2x1/4 hollow structural section, secured with three-eighths-inch by 3-inch by 3-inch flat washers and double nuts at the top and one-half-inch by 3-inch by 3-inch flat washers and double nuts at the bottom. A metal stud wall aligns adjacent to the landing channel per architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
