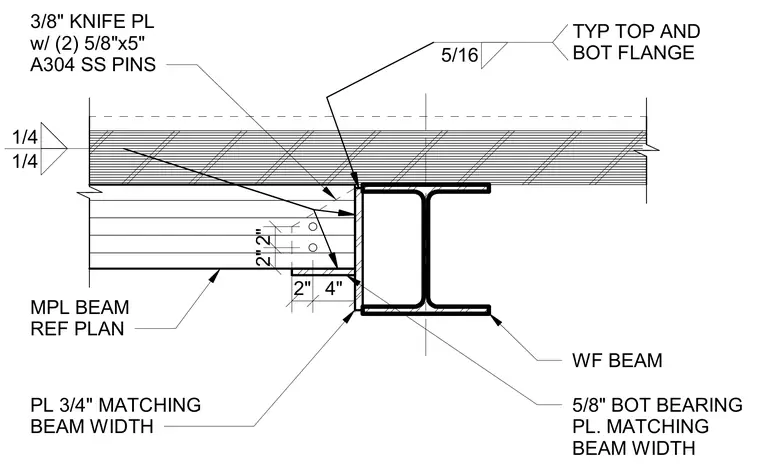

A wide-flange beam frames into a wide-flange column via a 3/8-inch knife plate secured with two 5/8-inch by 5-inch A304 stainless steel pins. A 3/4-inch plate matching the beam width is welded to the support, supplemented by a 5/8-inch bottom bearing plate matching the beam width. Five-sixteenth-inch fillet welds attach the assembly at the top and bottom flanges.
WF BEAM PL 3/4" MATCHING BEAM WIDTH 5/8" BOT BEARING PL. MATCHING BEAM WIDTH 2" 2" 2" 4" MPL BEAM REF PLAN 1/4 1/4 3/8" KNIFE PL w/ (2) 5/8"x5" A304 SS PINS 5/16 TYP TOP AND BOT FLANGE
