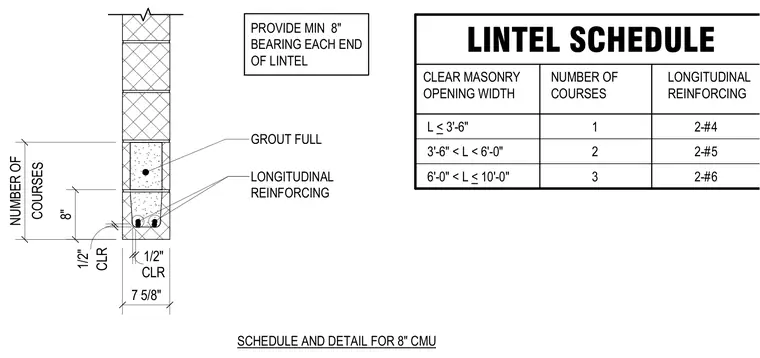

This structural detail and schedule specifies concrete masonry unit lintel requirements for clear masonry openings up to 10 feet wide. The schedule correlates opening width ranges with the required number of courses and longitudinal reinforcing steel size, specifying two number four bars for openings up to 3 feet 6 inches, two number five bars for intermediate widths up to 6 feet, and two number six bars for widths up to 10 feet. A minimum 8 inch bearing length is required at each end of the lintel. The cross-section shows fully grouted masonry cells with longitudinal reinforcing bars positioned with one-half inch clearance.
LINTEL SCHEDULE CLEAR MASONRY OPENING WIDTH NUMBER OF COURSES LONGITUDINAL REINFORCING L < 3'-6" 1 2-#4 3'-6" < L < 6'-0" 2 2-#5 6'-0" < L < 10'-0" 3 2-#6 PROVIDE MIN 8" BEARING EACH END OF LINTEL LONGITUDINAL REINFORCING SCHEDULE AND DETAIL FOR 8" CMU 7 5/8" COURSES NUMBER OF 8" GROUT FULL CLR 1/2" CLR 1/2"
