Structural · S-2NPK9

Note: Complete Welding

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Floors / Slabs Decks Connections / Plates

Connections

Moment Connection Welded Connection Shear Stud / Composite Deck Attachment

About this detail

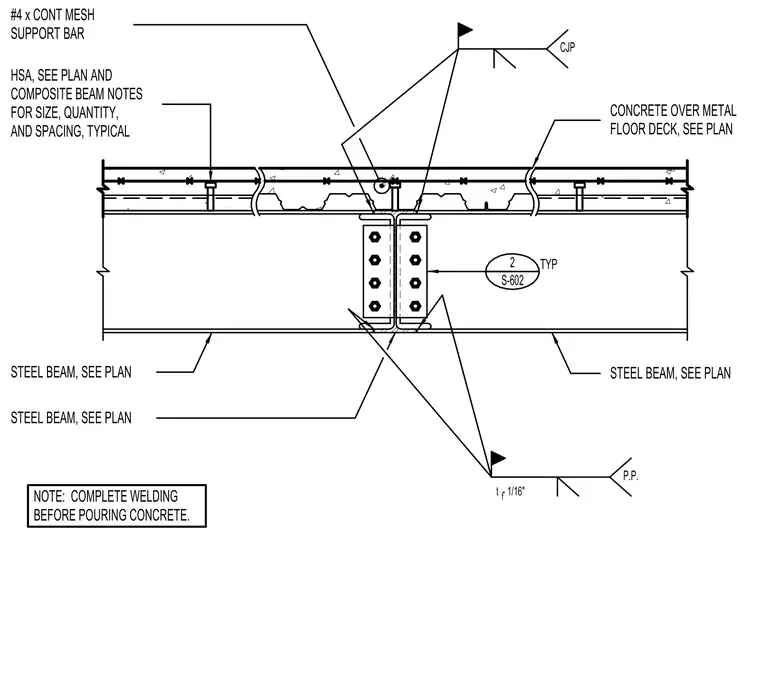

Steel beams sized per plan frame into a shear connection with a bolted web plate, carrying a concrete slab cast over a metal floor deck. Headed shear anchors are spaced along the top flange of the beam per plan and composite beam notes to achieve composite action. A continuous number four mesh support bar is positioned within the slab assembly above the beam joint. Complete all structural welding before pouring the concrete slab, utilizing complete joint penetration and partial penetration welds with specified root openings as indicated.
