Structural · S-2NMRB

Elevator Guide Rail Support at Edge Beam

Materials

Concrete Steel Metal (misc.)

Elements

Beams Decks

Connections

HSS Connection Bolted Connection Expansion / Slip Connection

About this detail

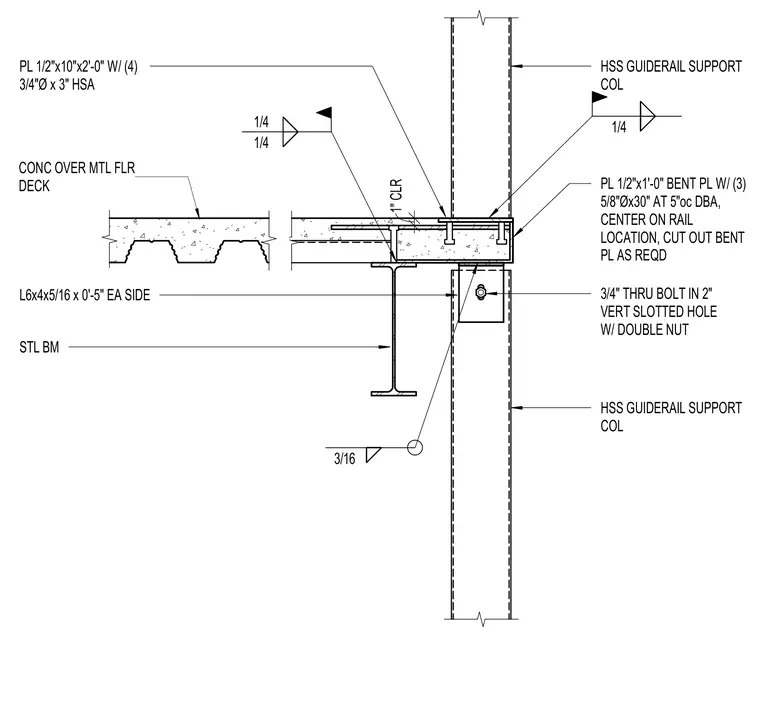

An elevator guide rail support hollow structural section column attaches to a structural steel edge beam supporting a concrete slab over metal deck. The connection features a half-inch by ten-inch by two-foot base plate secured with four three-quarter-inch diameter by three-inch heavy-duty sleeve anchors, alongside a half-inch by one-foot bent plate fastened with three five-eighths-inch diameter by thirty-inch deformed bar anchors at five inches on center, cut out as required and centered on the rail location. A three-quarter-inch through bolt in a two-inch vertical slotted hole with double nuts connects an L6x4x5/16 angle, five inches long on each side, between the hollow structural section support column and the steel beam web. Fillet welds of various sizes including three-sixteenths and one-quarter inch are specified throughout the steel assembly, maintaining a one-inch clearance.
