Structural · S-2NJMR

Typical Connection at Brace Top

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection

About this detail

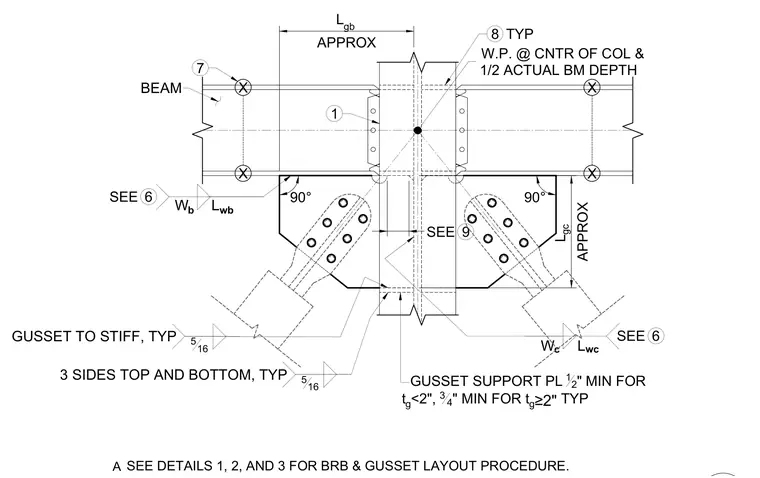

A structural brace top connection frames into a steel column and beam assembly. The gusset plate connects to the column and beam via fillet welds, with five-sixteenth inch welds specified on three sides top and bottom typically. A gusset support plate is included, requiring a one-half inch minimum thickness for gusset plates less than two inches and a three-quarter inch minimum thickness for gusset plates greater than or equal to two inches. The working point is located at the center of the column and one-half of the actual beam depth.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
