Typical Braced Frame - Column Flange Condition

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Welded Connection

About this detail

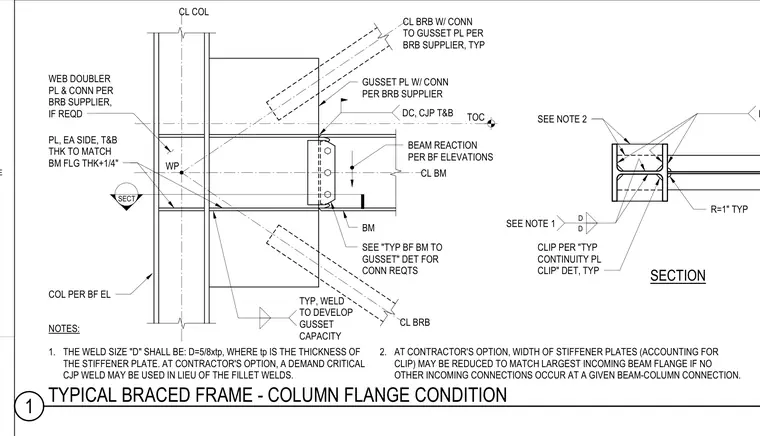

A structural braced frame connection at a steel column flange. The assembly features a gusset plate and web doubler plates connected to the buckling-restrained brace per the supplier specifications. Stiffener plates are detailed on each side with thicknesses matching the beam flange plus one-quarter inch. Welds are specified to develop the full gusset capacity, with demand critical complete joint penetration welds utilized as an option. Additional cross-sections show clip details and continuity plate configurations with standard radiused corners.
