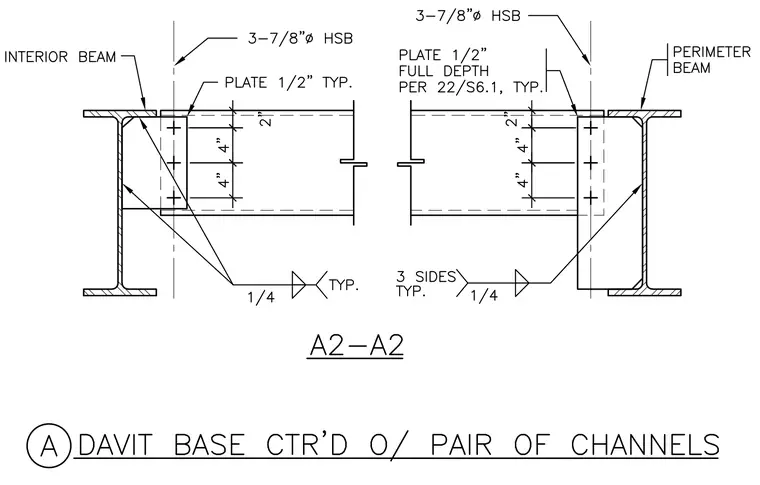

An interior beam connects to an interior support using three seven-eighths inch diameter high-strength bolts through a one-half inch typical plate and a one-quarter inch fillet weld applied to three sides typical. A perimeter beam mirrors this assembly with three seven-eighths inch diameter high-strength bolts and a one-half inch full depth plate sized per drawing twenty-two slash S six point one typical, secured with a one-quarter inch fillet weld on three sides typical. Vertical bolt spacing measures four inches between fasteners with a two inch edge distance.
