Structural · S-2MPGA

Sawcut Control Joint at Slab Column Lines

Materials

Concrete Reinforced Concrete

Elements

Columns Floors / Slabs Expansion / Control Joints Waterproofing / Flashing Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

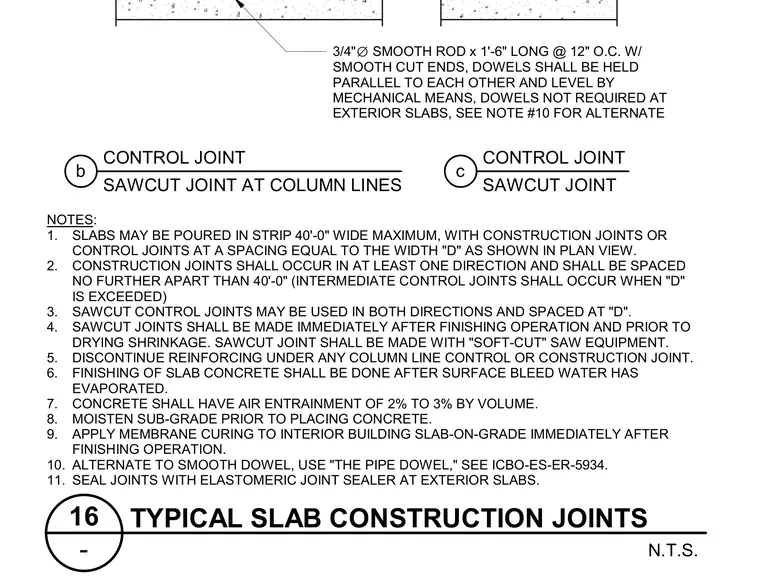

Concrete slab-on-grade joints feature three-quarter-inch diameter by one-foot six-inch long smooth dowels spaced at twelve inches on center with smooth cut ends. Dowels are held parallel and level by mechanical means, with alternate pipe dowels permitted per ICBO-ES-ER-5934. Exterior slabs receive elastomeric joint sealer, while interior slabs are discontinued at column line control or construction joints without continuing reinforcing. Sawcut control joints are made immediately after finishing operations using soft-cut saw equipment prior to drying shrinkage.
