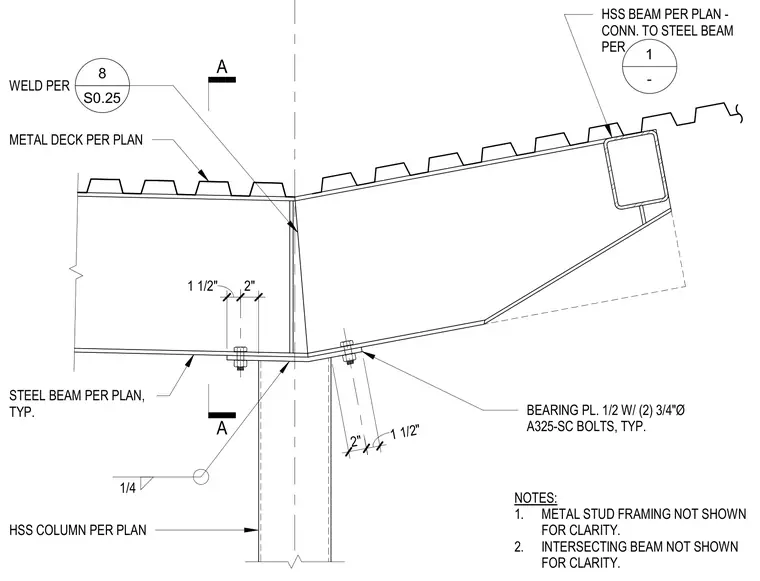

An HSS column supports a structural steel beam and an HSS beam framing into it. A one-half-inch bearing plate connects to the members using two three-quarter-inch-diameter A325-SC bolts typically, with a quarter-inch fillet weld specified. Metal deck rests atop the framing members per plan. Metal stud framing and intersecting beams are omitted for clarity.
STEEL BEAM PER PLAN, TYP. METAL DECK PER PLAN HSS COLUMN PER PLAN A A WELD PER 8 S0.25 1 1/2" 2" 1 1/2" 2" 1/4 BEARING PL. 1/2 W/ (2) 3/4"Ø A325-SC BOLTS, TYP. HSS BEAM PER PLAN - CONN. TO STEEL BEAM PER 1 - NOTES: 1. METAL STUD FRAMING NOT SHOWN FOR CLARITY. 2. INTERSECTING BEAM NOT SHOWN FOR CLARITY.
