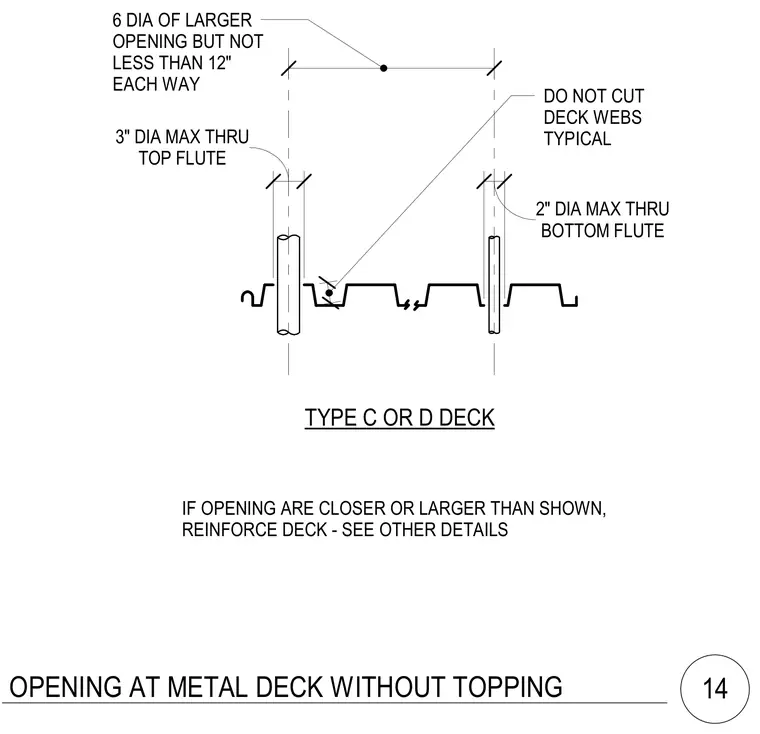

This structural detail establishes the maximum allowable size and spacing for core drills and penetrations through an untopped Type C or D metal deck. Openings are restricted to a maximum diameter of three inches through the top flute and two inches through the bottom flute. Deck webs must remain completely uncut throughout the penetration area. Supplemental reinforcement extending six diameters of the larger opening, but not less than twelve inches each way, is required if openings exceed these limits or are spaced closer together than specified.
TYPE C OR D DECK IF OPENING ARE CLOSER OR LARGER THAN SHOWN, REINFORCE DECK - SEE OTHER DETAILS DO NOT CUT DECK WEBS TYPICAL TOP FLUTE 3" DIA MAX THRU BOTTOM FLUTE 2" DIA MAX THRU 6 DIA OF LARGER OPENING BUT NOT LESS THAN 12" EACH WAY OPENING AT METAL DECK WITHOUT TOPPING 14
