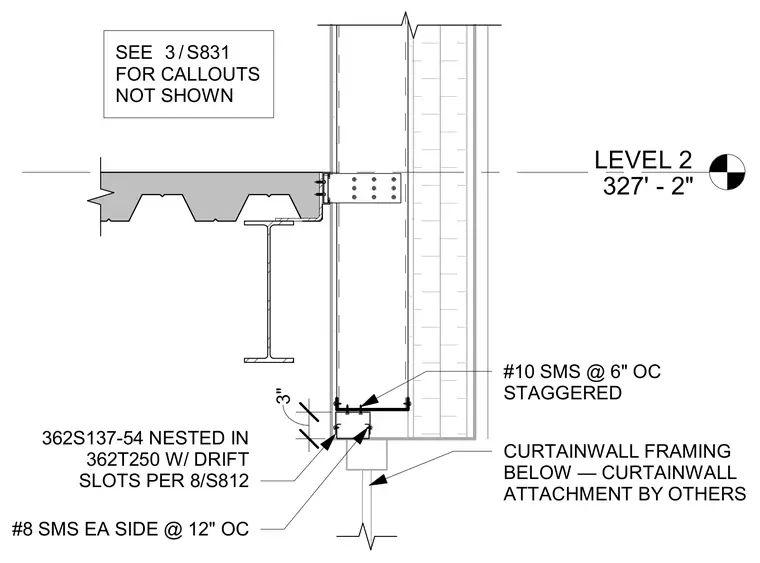

A cold-formed steel 362S137-54 stud is nested in a 362T250 track with drift slots per detail 8/S812 and secured with number 8 sheet metal screws on each side at twelve inches on center. The assembly is fastened with number 10 sheet metal screws at six inches on center staggered. The curtain wall framing below connects to the assembly by others.
LEVEL 2 327' - 2" CURTAINWALL FRAMING BELOW — CURTAINWALL ATTACHMENT BY OTHERS #10 SMS @ 6" OC STAGGERED 362S137-54 NESTED IN 362T250 W/ DRIFT SLOTS PER 8/S812 #8 SMS EA SIDE @ 12" OC 3" SEE FOR CALLOUTS NOT SHOWN / 3 S831
