This assembly consists of a treated 2x lumber nailer plate secured to a concrete tilt-up panel using 1/2-inch diameter by 10-inch long hot-dipped galvanized carriage bolts with a minimum yield strength of 36 ksi. The bolts are countersunk flush with the bottom of the nailer, with a nut and washer on top and an additional nut to secure the bolt to the plate. Fasteners are spaced at a maximum of 24 inches on center, with a tighter spacing of 12 inches on center required within 24 feet of each corner. Bolts must maintain a minimum 4-inch clearance from concrete pockets and are installed with a minimum 1 1/2-inch edge distance from the concrete face. The nailer must be number 2 or better Southern Pine, and countersinking is limited to a maximum of 3/4-inch depth.
Text on the drawing

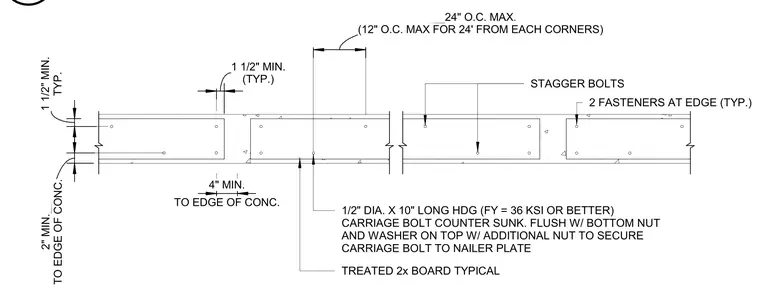

DATE: 02/20/2023 TO EDGE OF CONC. 4" MIN. (TYP.) 1 1/2" MIN. TO EDGE OF CONC. 2" MIN. TYP. 1 1/2" MIN. (12" O.C. MAX FOR 24' FROM EACH CORNERS) 24" O.C. MAX. STAGGER BOLTS 2 FASTENERS AT EDGE (TYP.) TREATED 2x BOARD TYPICAL 1/2" DIA. X 10" LONG HDG (FY = 36 KSI OR BETTER) CARRIAGE BOLT COUNTER SUNK. FLUSH W/ BOTTOM NUT AND WASHER ON TOP W/ ADDITIONAL NUT TO SECURE CARRIAGE BOLT TO NAILER PLATE NOTES: 1. IF ANCHORS CONFLICT WITH POCKETS ADD ONE ANCHOR 4" FROM BOTH SIDES OF POCKET. 2. DO NOT LOCATE CLOSER THAN 4" TO POCKET. 3. NAILER IS #2 OR BETTER SOUTHERN PINE 2x8 OR LARGER. 4. COUNTERSINK A MAXIMUM OF 3/4" 5. ROOFING MEMBRANE MUST BE ATTACHED TO DECKING OR PARAPET, SUCH THAT THERE IS NO MORE THAN 6" FROM THE EDGE OF THE BLOCKING TO THE ATTACHMENT OF THE MEMBRANE TO THE ROOF OR PARAPET. CONNECTION IS DESIGNED FOR A MAXIMUM OF 150 PSF CODE LEVEL CORNER WIND UPLIFT. TIE BACK STRAPS FOR GUTTERS MUST BE DESIGNED AND INSTALLED SUCH THAT NO MORE THAN 200# OF LOAD IS EXERTED ON THE BLOCKING PERPENDICULAR TO THE WALL. DECK ATTACHMENT TO TILT-UP PANEL W/ PARAPET SCALE: 3/4" = 1'-0" S301 6 JOIST GIRDER TO TILT-UP PANEL W/ PARAPET
