Structural · S-2KV6J

Timber Lagging Corner Angle at Piles

Materials

About this detail

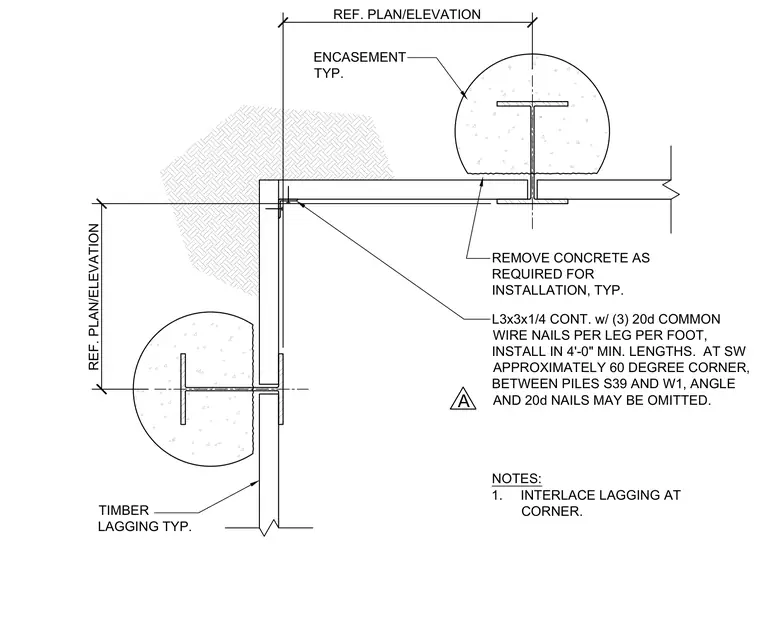

Timber lagging at the wall corner is interlaced and tied back to structural steel piles with concrete encasement. A continuous L3x3x1/4 angle is fastened with three 20d common wire nails per leg per foot, installed in minimum 4'-0" lengths. Concrete is removed as required for installation. At the southwest approximately 60-degree corner between piles S39 and W1, the angle and 20d nails may be omitted.
