Structural · S-2KPCK

Concrete Shear Wall Boundary Reinforcement Plan Detail

Materials

Concrete

Elements

Walls Shear Walls Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

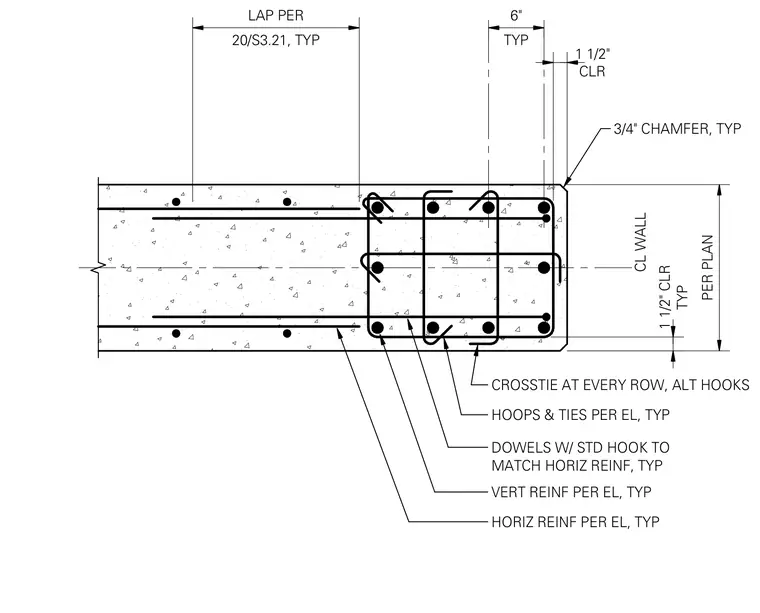

This plan detail shows the boundary element of a concrete shear wall reinforced with vertical and horizontal bars per elevation. Confinement is provided by closed hoops and ties with alternating hooks, along with crossties at every row. The exterior edges feature a typical three-quarter inch chamfer and maintain a one and one-half inch concrete clearance to the reinforcement. Dowels with standard hooks match the horizontal reinforcement, and lap splices are detailed per sheet twenty on S3.21.
