Structural · S-2KNEP

Steel Girder Bearing at Coped Beam at Corner

Materials

Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Facades / Cladding Arches Connections / Plates

Connections

Bolted Connection Deck Attachment

About this detail

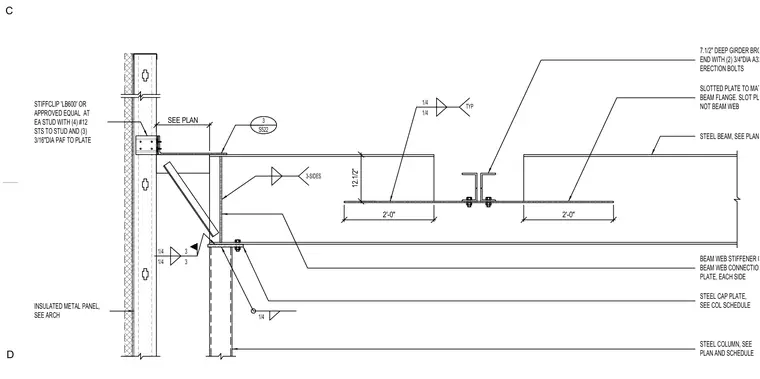

A steel girder bears on a support detail featuring a coped beam condition at a corner. The assembly includes a steel column supporting a steel beam with a steel cap plate sized per the column schedule. A beam web stiffener or beam web connection plate is provided on each side, welded with quarter-inch fillet welds on three sides. A slotted plate matches the beam flange and is bolted with two three-quarter-inch diameter A325 erection bolts, with the slot placed in the plate rather than the beam web. Framing members connect back to an insulated metal panel wall assembly using StiffClip LB600 clips secured with four number twelve self-tapping screws to the stud and three three-sixteenth-inch diameter powder-actuated fasteners to the plate.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
