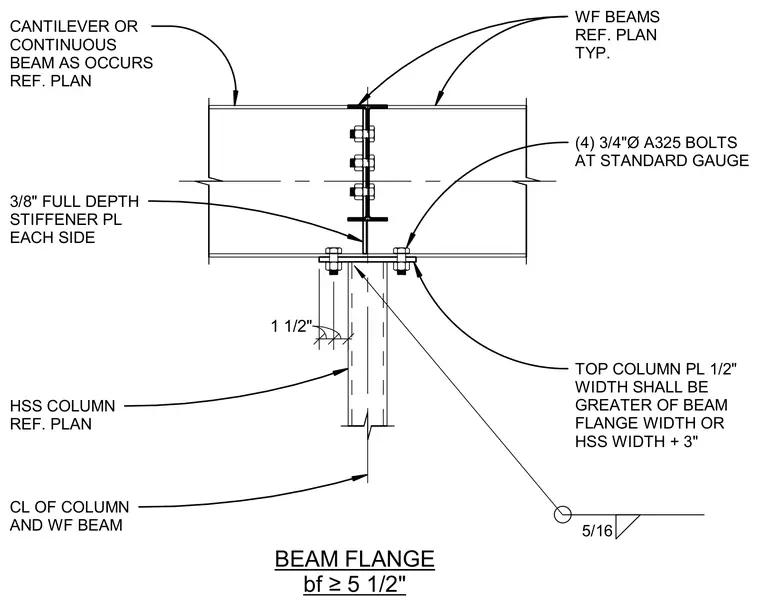

Wide-flange beams frame into a hollow structural section column utilizing a one-half-inch top column plate whose width equals the greater of the beam flange width or the HSS width plus three inches. Three-eighths-inch full-depth stiffener plates are welded to each side of the column web with five-sixteenths fillet welds. The beam webs connect with four three-quarter-inch-diameter A325 bolts at standard gauge. The beams are detailed as cantilever or continuous members per plan.
WF BEAMS REF. PLAN TYP. BEAM FLANGE bf ≥5 1/2" CL OF COLUMN AND WF BEAM HSS COLUMN REF. PLAN 3/8" FULL DEPTH STIFFENER PL EACH SIDE (4) 3/4"Ø A325 BOLTS AT STANDARD GAUGE TOP COLUMN PL 1/2" WIDTH SHALL BE GREATER OF BEAM FLANGE WIDTH OR HSS WIDTH + 3" 5/16 CANTILEVER OR CONTINUOUS BEAM AS OCCURS REF. PLAN 1 1/2" 1 1/2"
