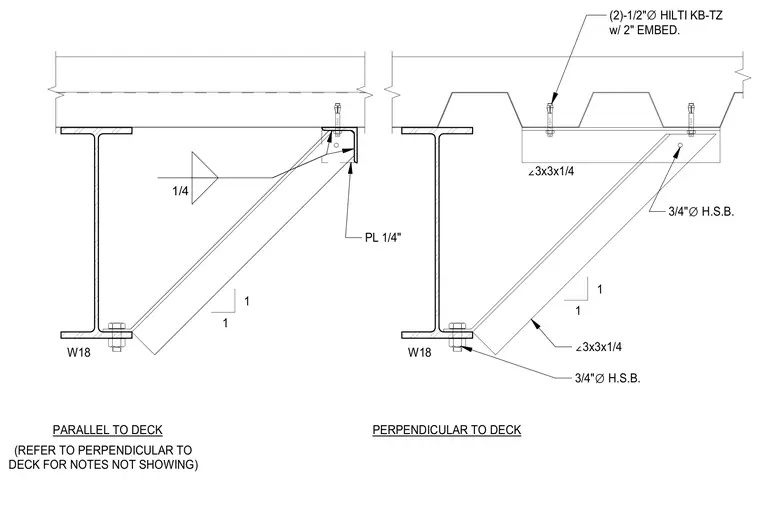

A structural steel W18 beam bottom flange is braced using a 3x3x1/4 angle connected with three-quarter-inch high-strength bolts. For the parallel to deck condition, the angle connects to a quarter-inch plate welded with a quarter-inch fillet weld. For the perpendicular to deck condition, the angle is anchored directly to the concrete-filled metal deck using two half-inch diameter Hilti KB-TZ expansion anchors with two-inch embedment.
PARALLEL TO DECK PERPENDICULAR TO DECK 1/4 PL 1/4" 1 1 1 1 W18 W18 ∠ 3x3x1/4 ∠ 3x3x1/4 3/4" ∅ H.S.B. 3/4" ∅ H.S.B. (2)-1/2" ∅ HILTI KB-TZ w/ 2" EMBED. (REFER TO PERPENDICULAR TO DECK FOR NOTES NOT SHOWING)
