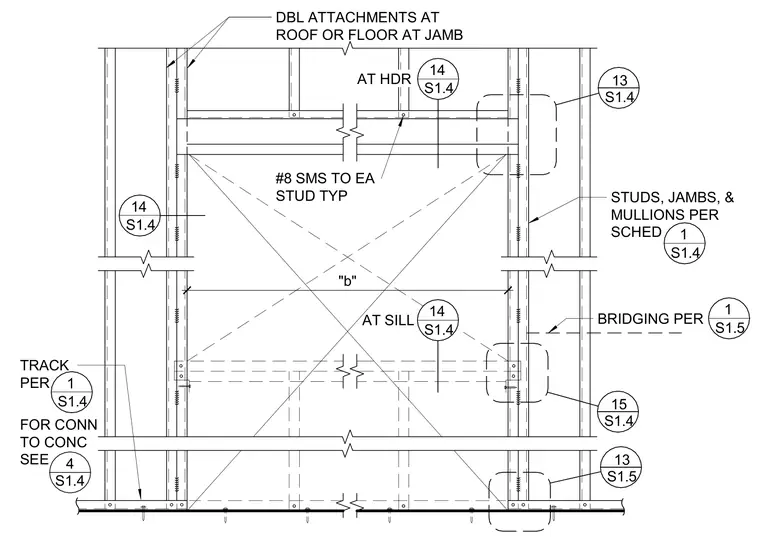

Cold-formed steel stud framing for an opening features vertical studs, jambs, and mullions sized per schedule with bridging. Double attachments secure the jambs at the roof or floor level. Number eight self-tapping sheet metal screws fasten to each stud typically at the header and sill tracks. Connection to concrete is detailed separately per structural drawings.
"b" STUDS, JAMBS, & MULLIONS PER SCHED BRIDGING PER DBL ATTACHMENTS AT ROOF OR FLOOR AT JAMB TRACK PER FOR CONN TO CONC SEE #8 SMS TO EA STUD TYP AT HDR AT SILL 1 S1.4 ___________ 1 S1.4 ___________ 1 S1.5 ___________ 14 S1.4 ___________ 14 S1.4 ___________ 13 S1.4 15 S1.4 14 S1.4 ___________ 4 S1.4 13 S1.5
