Structural · S-2JZDE

Cold-Formed Steel Roof Truss and Gutter Support Detail

Materials

Elements

About this detail

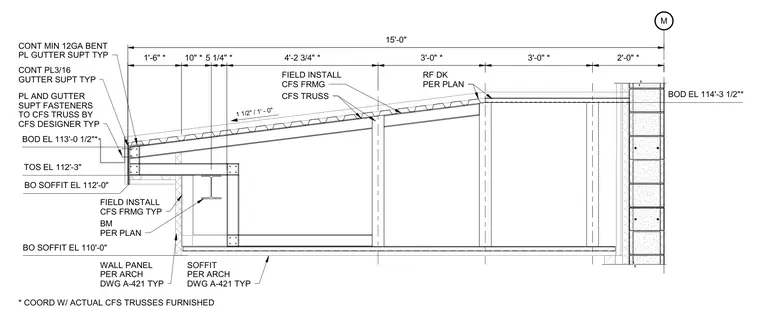

A cold-formed steel roof truss bears on cold-formed steel framing with a continuous three-sixteenths-inch plate and a continuous minimum twelve-gauge bent plate for gutter support at the overhang. Fasteners connecting the plate and gutter support to the cold-formed steel truss are provided by the cold-formed steel designer. The roof deck, structural beam, wall panels, and soffit are installed per plan and architectural drawings, maintaining designated bottom-of-deck, top-of-steel, and bottom-of-soffit elevations across the span.
