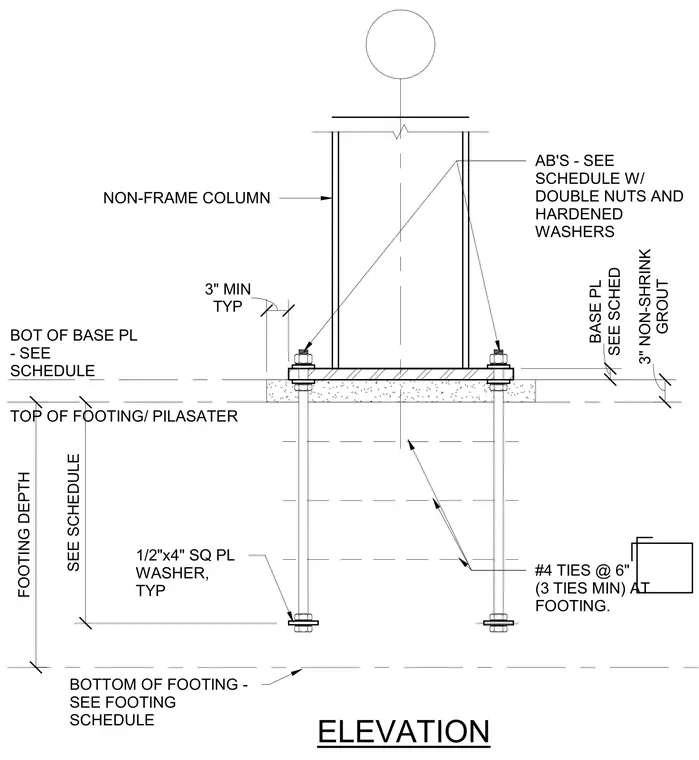

A structural steel non-frame column bears on a base plate sized per schedule over three inches of non-shrink grout. The base plate is secured to a concrete footing or pilaster using anchor bolts equipped with double nuts and hardened washers, plus one-half-inch by four-inch square plate washers typically at the embedded ends. Number four ties are spaced at six inches on center with a minimum of three ties at the footing.
BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/ PILASATER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS NON-FRAME COLUMN ELEVATION BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT FOOTING.
