Structural · S-2JMP8

Braced Frame Detail

Materials

Concrete Masonry / CMU

Elements

Floors / Slabs Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Embed Plate

About this detail

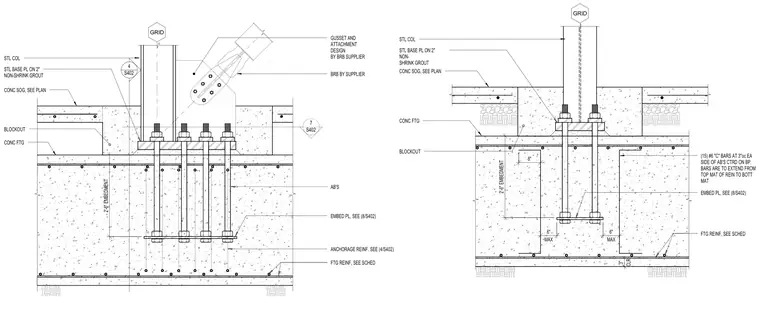

A structural steel column bears on a steel base plate set on two inches of non-shrink grout over a concrete footing. The column features a gusset plate and attachment for a buckling-restrained brace designed by the brace supplier. Anchor bolts extend two feet six inches into the concrete footing and terminate at an embed plate with anchorage reinforcement. Fifteen number six "C" bars at three inches on center are placed on each side of the anchor bolts, centered on the base plate, extending from the top mat of reinforcement to the bottom mat. A concrete slab on grade interfaces with the footing via a blockout.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
