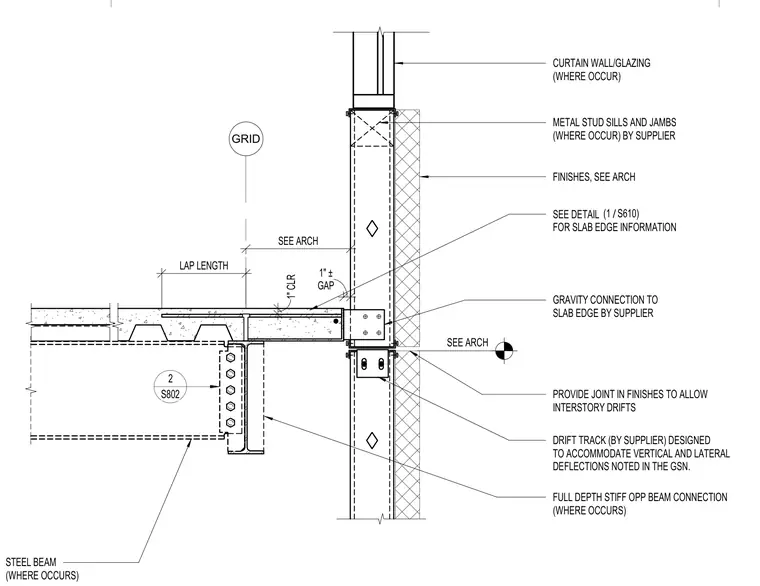

A structural connection features a full-depth stiffened beam occurring opposite a cold-formed steel drift track at the slab edge. A steel beam frames into the assembly, featuring a gravity connection to the slab edge provided by the supplier. The drift track utilizes a 2 S802 profile designed to accommodate vertical and lateral deflections noted in the general structural notes. A one-inch clearance gap is maintained between the slab edge and exterior finishes, with a joint provided in the finishes to allow for interstory drifts. Metal stud sills, jambs, and curtain wall or glazing assemblies coordinate with the exterior facade finishes.
GRID LAP LENGTH 1" CLR SEE ARCH SEE DETAIL FOR SLAB EDGE INFORMATION SEE ARCH GRAVITY CONNECTION TO SLAB EDGE BY SUPPLIER GAP 1" ± FINISHES, SEE ARCH FULL DEPTH STIFF OPP BEAM CONNECTION (WHERE OCCURS) 2 S802 DRIFT TRACK (BY SUPPLIER) DESIGNED TO ACCOMMODATE VERTICAL AND LATERAL DEFLECTIONS NOTED IN THE GSN. / (1 S610) STEEL BEAM (WHERE OCCURS) PROVIDE JOINT IN FINISHES TO ALLOW INTERSTORY DRIFTS CURTAIN WALL/GLAZING (WHERE OCCUR) METAL STUD SILLS AND JAMBS (WHERE OCCUR) BY SUPPLIER
