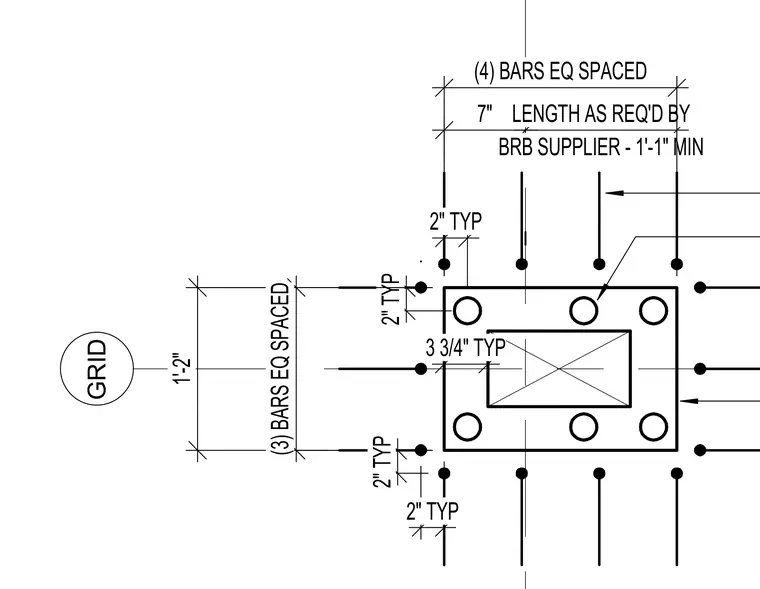

A buckling-restrained brace connection aligns relative to a grid line. The layout incorporates a base plate with equally spaced reinforcing bars, including four bars along one axis and three bars along the intersecting axis. Typical edge distances and spacing dimensions apply to the reinforcement and connection elements, with a minimum one-foot-one-inch length specified by the buckling-restrained brace supplier.
2" TYP 7" BRB SUPPLIER - 1'-1" MIN LENGTH AS REQ'D BY GRID 1'-2" (3) BARS EQ SPACED (4) BARS EQ SPACED 2" TYP 2" TYP 2" TYP 3 3/4" TYP
