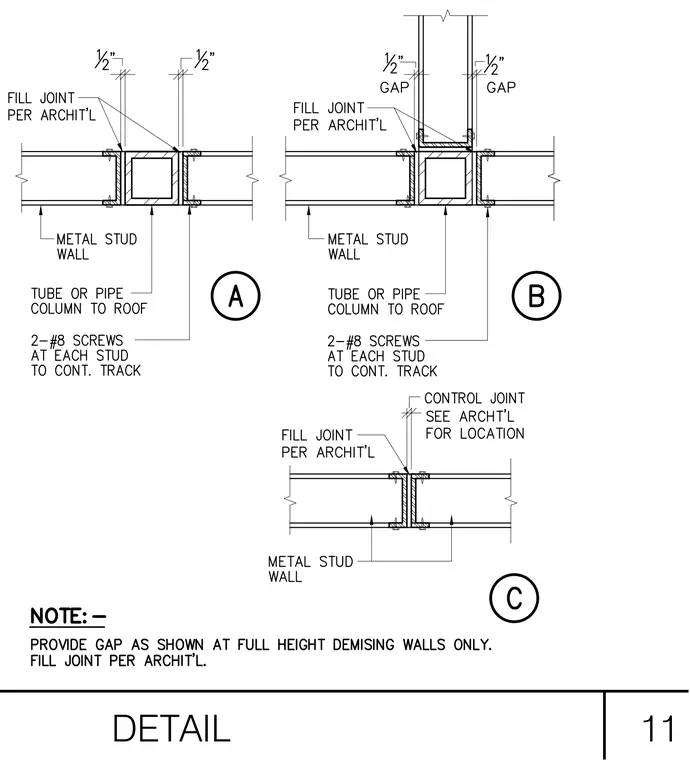

Metal stud wall partitions terminate at structural tube or pipe columns with half-inch joints filled per architectural specifications. Two number eight screws secure each stud to the continuous track. Full height demising walls require a half-inch gap as shown, with joints filled per architectural specifications. A control joint is provided with location specified per architectural drawings.
