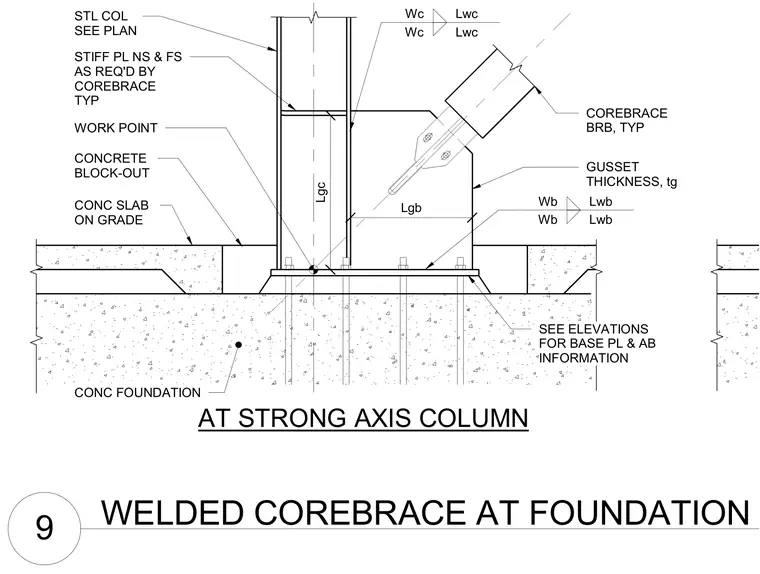

A buckling-restrained brace connects to a steel column and gusset plate above a concrete foundation and slab on grade. Stiffener plates are welded near and far side as required by the corebrace manufacturer. A concrete block-out is provided around the column base, with baseplate and anchor bolt information referenced on elevations. The work point is located at the intersection of the column and brace centerlines.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL NS & FS AS REQ'D BY COREBRACE TYP CONC FOUNDATION WORK POINT Wc Lwc Wc Lwc COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb SEE ELEVATIONS FOR BASE PL & AB INFORMATION AT STRONG AXIS COLUMN Lgc Lgb 9 WELDED COREBRACE AT FOUNDATION
