A reinforced concrete grade beam supports an above-grade slab, with dimensions and bar sizes sized per schedule. Two number four dowels spaced at sixteen inches on center extend with twelve inches of embedment into the grade beam. Longitudinal reinforcement includes top bars, bottom bars, top added bars, bottom added bars, and number five bars each face for depths greater than thirty inches. Stirrups enclose the longitudinal reinforcement, and all reinforcing is detailed per the structural schedule.

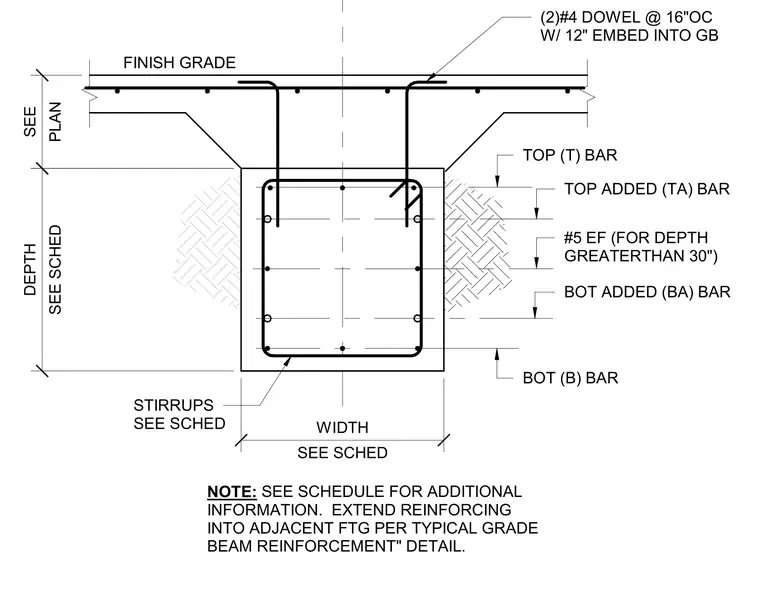

NOTE: SEE SCHEDULE FOR ADDITIONAL INFORMATION. EXTEND REINFORCING INTO ADJACENT FTG PER TYPICAL GRADE BEAM REINFORCEMENT" DETAIL. FINISH GRADE SEE SCHED DEPTH PLAN SEE SEE SCHED WIDTH (2)#4 DOWEL @ 16"OC W/ 12" EMBED INTO GB STIRRUPS SEE SCHED TOP (T) BAR BOT (B) BAR TOP ADDED (TA) BAR BOT ADDED (BA) BAR #5 EF (FOR DEPTH GREATERTHAN 30")
