Architectural · S-2JEGX

Floor Transition Porcelain Tile-To-LVT/Resilient

Materials

Elements

About this detail

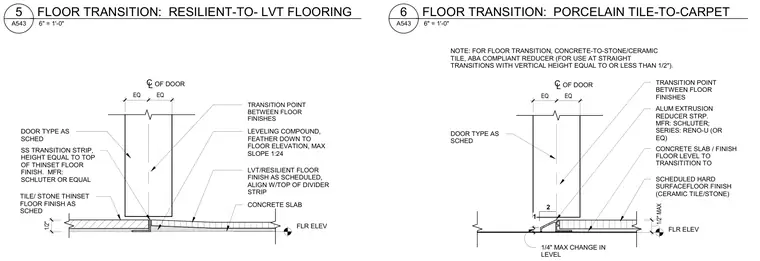

A floor transition assembly between different flooring materials over a concrete slab occurs at a door centerline. The porcelain tile or stone is set in a thinset floor finish with a stainless steel transition strip matching the height of the thinset finish. Adjacent resilient or LVT flooring is installed over a leveling compound feathered down to the floor elevation at a maximum slope of 1:24, aligned with the top of the divider strip. A door of scheduled type centers over the transition point.
