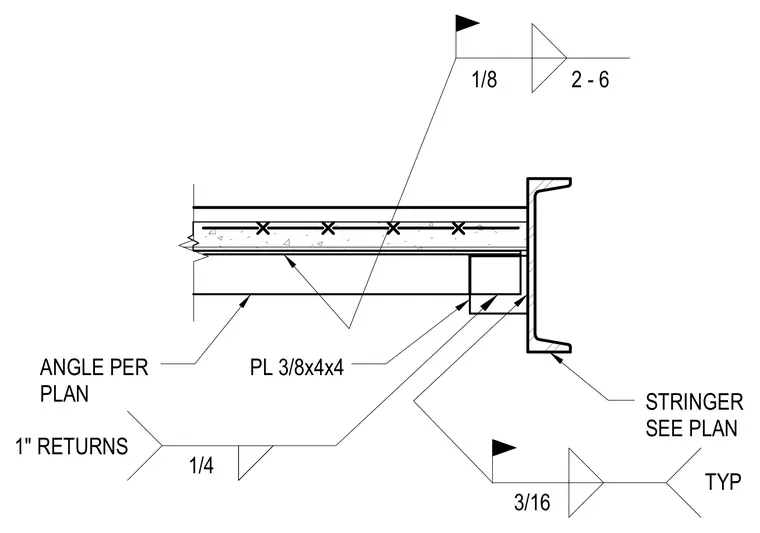

A structural steel landing angle connects to the stair stringer channel, sized per plan. A three-eighths by four by four inch steel plate is welded to the assembly with a one-quarter inch fillet weld featuring one-inch returns. An additional connection uses a three-sixteenths inch fillet weld applied typically.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
