Structural · S-2J2CH

Precast Concrete Panel to Panel Connection and Corner Reinforcement Details

Materials

Concrete Steel

Elements

Walls Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Bolted Connection Rebar Splice / Development

About this detail

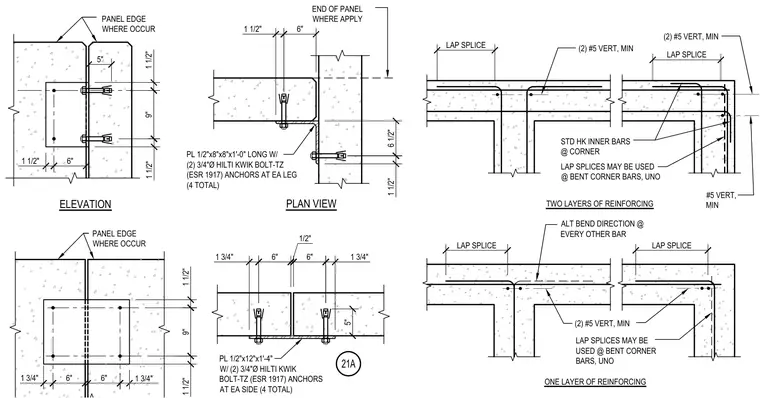

These structural details show connection assemblies and reinforcing configurations for precast concrete wall panels. The flat and angled plate connections utilize half-inch thick steel plates secured with three-quarter-inch diameter Hilti Kwik Bolt-TZ expansion anchors, with four total anchors per plate assembly. Accompanying plan details illustrate vertical corner reinforcing with number five vertical bars, incorporating standard hooks on inner bars and alternate bend directions at every other bar where single or double layers of reinforcing occur.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
