Structural · S-2J29P

Glulam Beam Connection at Concrete Chimney Wall

Materials

Concrete Steel Timber / Wood

Elements

Beams Walls Roofs Anchors / Embeds Connections / Plates

Connections

Bolted Connection Embed Plate

About this detail

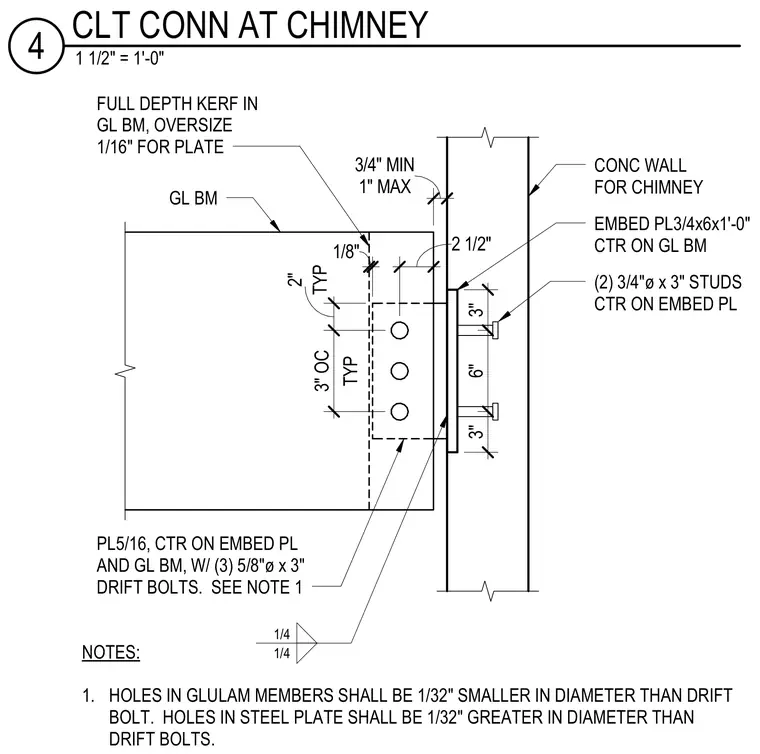

A structural connection joins a glulam beam to a concrete chimney wall, maintaining a three-quarter-inch to one-inch clearance from the glulam beam end. An embedded steel plate measuring three-quarters by six inches by one foot zero inches centers on the glulam beam and anchors with two three-quarter-inch diameter by three-inch headed studs. A full-depth kerf cut in the glulam beam, oversized by one-sixteenth of an inch, receives a five-sixteenth-inch steel plate centered on the embed plate. Three five-eighth-inch diameter by three-inch drift bolts spaced at three inches on center secure this internal plate to the glulam beam. Per the general notes, holes in the glulam members are drilled one-thirty-second of an inch smaller in diameter than the drift bolts, while holes in the steel plate are drilled one-thirty-second of an inch greater in diameter than the drift bolts.
