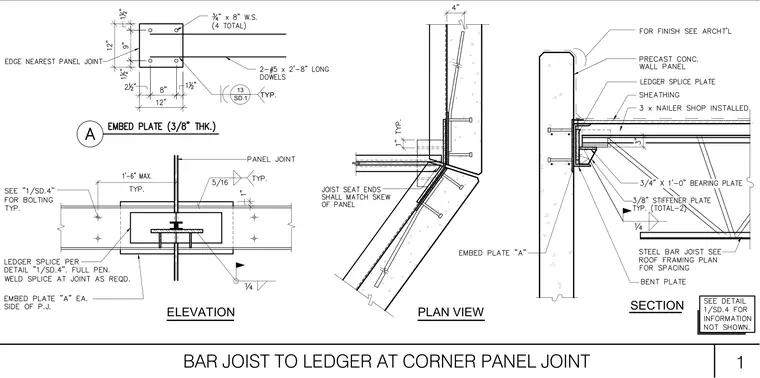

A steel bar joist bears on a precast concrete wall ledger at a corner panel joint. The assembly features a 3/8-inch thick embed plate anchored by four 3/4-inch by 8-inch welded studs and two #5 by 2-foot-8-inch long dowels. The steel bar joist rests on a 3/4-inch by 1-foot-0-inch bearing plate with a 3/8-inch stiffener plate welded with 1/4-inch fillets. The ledger splice plate connects adjacent wall panels near the corner, detailed with field-welded splices and specific bolting configurations per reference details. The joist seats are angled to match the skew of the precast concrete panels.
1 BAR JOIST TO LEDGER AT CORNER PANEL JOINT TYP. 13 SD.1 SECTION ELEVATION PLAN VIEW
