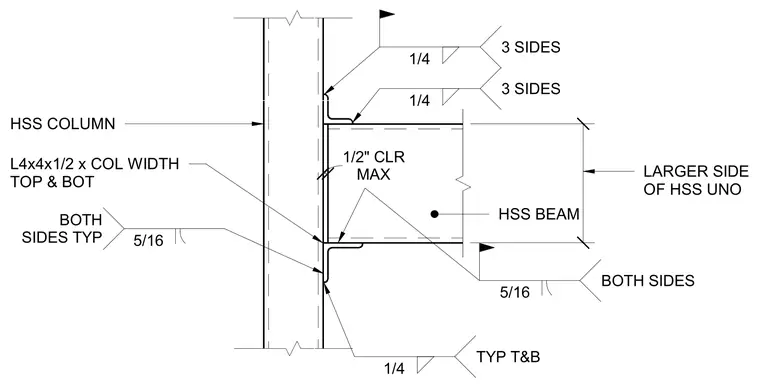

An HSS beam frames into an HSS column utilizing L4x4x1/2 angles spanning the column width at the top and bottom. A maximum one-half inch clearance is maintained between the beam end and the column face. The angles are welded to the column with five-sixteenths welds on both sides typically, and to the beam top and bottom flanges with one-quarter inch welds on three sides.
L4x4x1/2 x COL WIDTH TOP & BOT HSS COLUMN LARGER SIDE OF HSS UNO HSS BEAM 5/16 BOTH SIDES TYP 1/4 3 SIDES 5/16 BOTH SIDES 1/4 3 SIDES MAX 1/2" CLR 1/4 TYP T&B .
