Structural · S-2HPRT

Steel Framing Plan and Reinforcement Details for Floor Openings

Materials

Steel

Elements

Beams Decks Roof / Floor Openings

Connections

Deck Attachment

About this detail

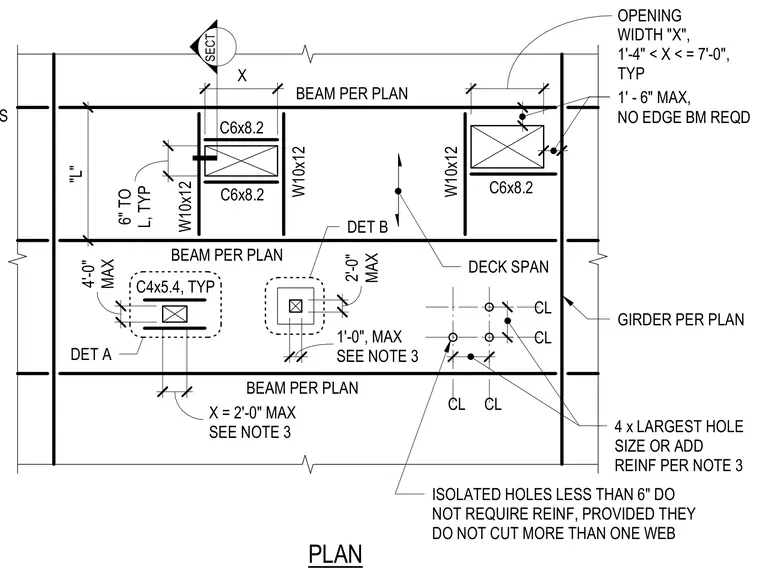

Framing layouts and reinforcement guidelines around floor and roof openings bounded by W10x12 beams and girders per plan. Openings with widths ranging from one foot four inches to seven feet feature channel headers such as C6x8.2 and C4x5.4 with specific spacing and maximum dimensions. Isolated holes under six inches in size do not require supplemental reinforcement provided they cut no more than one web and maintain clearances of at least four times the largest hole size. Detail calls and dimensional notes specify maximum edge distances and framing constraints for typical penetrations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
