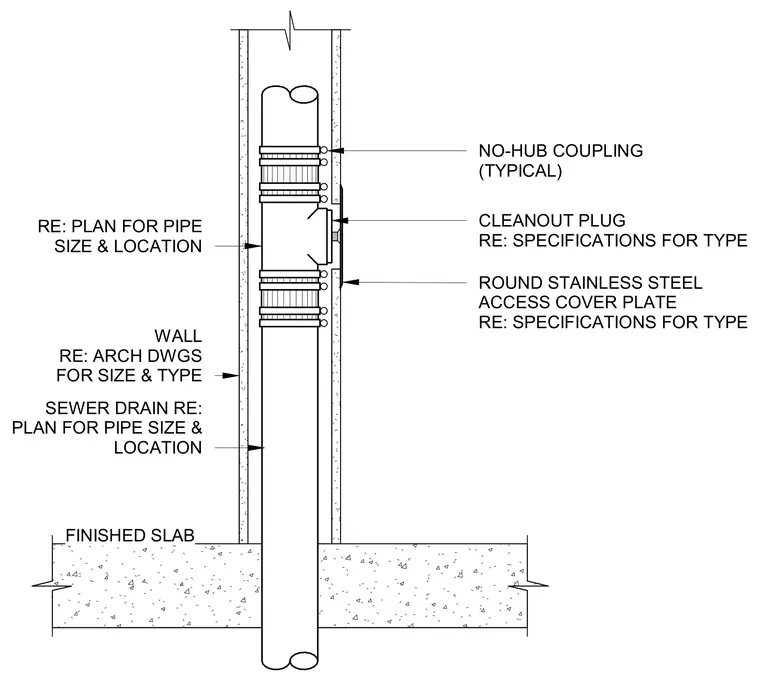

A sewer drain riser passes vertically through a finished concrete slab and extends upward inside a wall cavity. A cleanout tee fitting is spliced into the piping using typical no-hub couplings above and below. A cleanout plug seals the tee face, and a round stainless steel access cover plate finishes the wall opening flush with the surface.
FINISHED SLAB WALL RE: ARCH DWGS FOR SIZE & TYPE RE: PLAN FOR PIPE SIZE & LOCATION SEWER DRAIN RE: PLAN FOR PIPE SIZE & LOCATION ROUND STAINLESS STEEL ACCESS COVER PLATE RE: SPECIFICATIONS FOR TYPE CLEANOUT PLUG RE: SPECIFICATIONS FOR TYPE NO-HUB COUPLING (TYPICAL)
