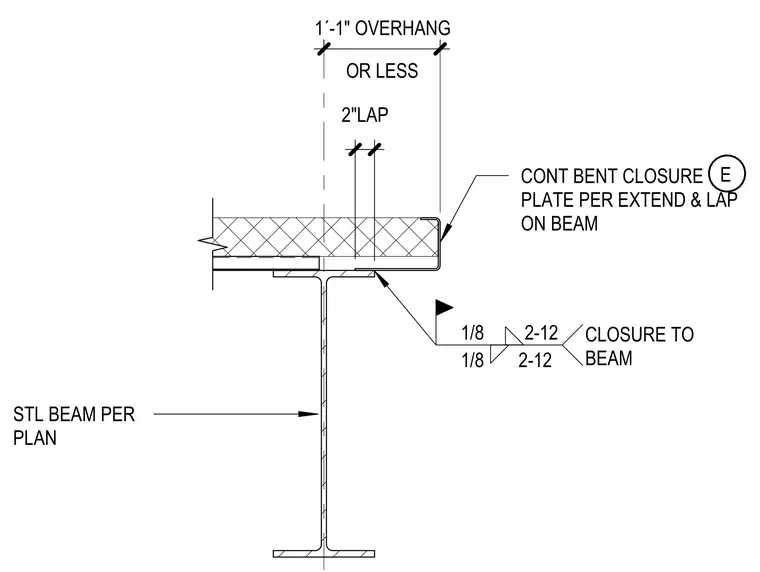

A continuous bent closure plate is welded to the steel beam flange with one-eighth inch fillet welds spaced at two inches on center. The plate extends over the end of the beam to form a two-inch lap condition for an overhang of one foot one inch or less. The steel beam size is determined per plan.
2"LAP CONT BENT CLOSURE PLATE PER EXTEND & LAP ON BEAM STL BEAM PER PLAN OR LESS 1´-1" OVERHANG 1/8 2-12 CLOSURE TO BEAM 1/8 2-12 E
