A beam web connects to a supporting girder or column web or column flange at an angle between 30 and 60 degrees using a connection plate sized per schedule. A hardened washer is installed on the nut side of the bolt assembly. The partial joint penetration weld configuration at the support requires a specified weld size based on plate thickness minus one-eighth inch, with a maximum eccentricity of three inches. Nuts must not be welded or tack-welded to the connection plate.

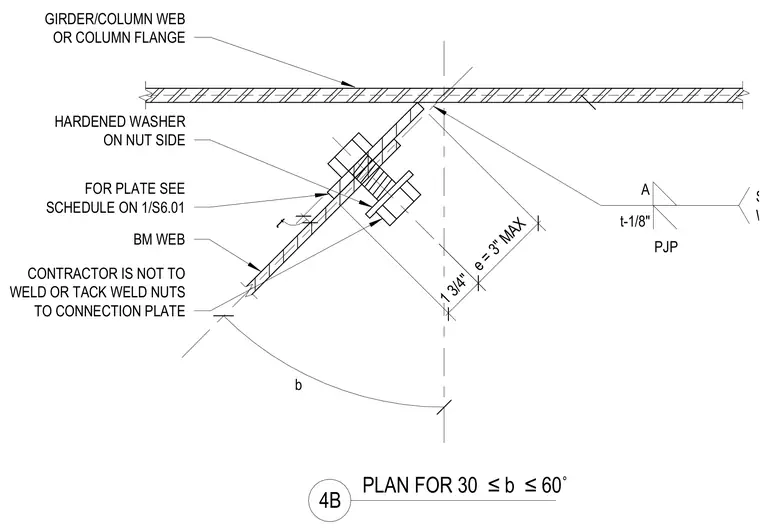

GIRDER/COLUMN WEB OR COLUMN FLANGE HARDENED WASHER ON NUT SIDE BM WEB b t-1/8" A SEE 1/S6.01 FOR WELD A e = 3" MAX 1 3/4" FOR PLATE SEE SCHEDULE ON 1/S6.01 t PJP CONTRACTOR IS NOT TO WELD OR TACK WELD NUTS TO CONNECTION PLATE 4B PLAN FOR 30 ≤b ≤60˚
