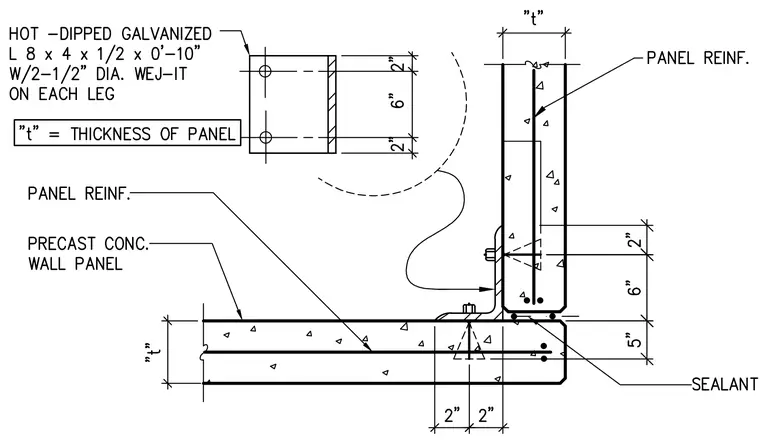

Precast concrete wall panels intersect at a corner with a hot-dipped galvanized angle measuring L 8 x 4 x 1/2 by zero feet ten inches long. The angle connects to the panels using two one-half-inch diameter Wej-It wedge anchors on each leg. Panel reinforcement consists of internal steel bars placed within the precast concrete thickness designated as "t". A sealant joint seals the exterior corner gap between the adjacent wall panels.
