Two SDCF221334 fasteners are installed staggered on each side of the column fork to secure the assembly. A Simpson MCT1.9x15 connector is centered in the column fork and pre-installed in the timber beam as required. The timber beam features a reduced width through the column fork and transitions to full width beyond the connection point. Cross-laminated timber flooring ties into the structural grid as referenced on plan.

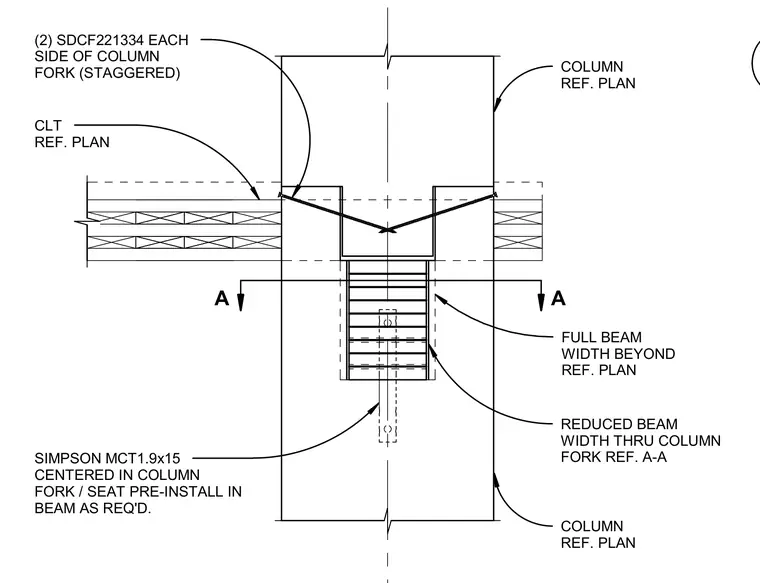

(2) SDCF221334 EACH SIDE OF COLUMN FORK (STAGGERED) CLT REF. PLAN SIMPSON MCT1.9x15 CENTERED IN COLUMN FORK / SEAT PRE-INSTALL IN BEAM AS REQ'D. COLUMN REF. PLAN REDUCED BEAM WIDTH THRU COLUMN FORK REF. A-A FULL BEAM WIDTH BEYOND REF. PLAN COLUMN REF. PLAN A A
