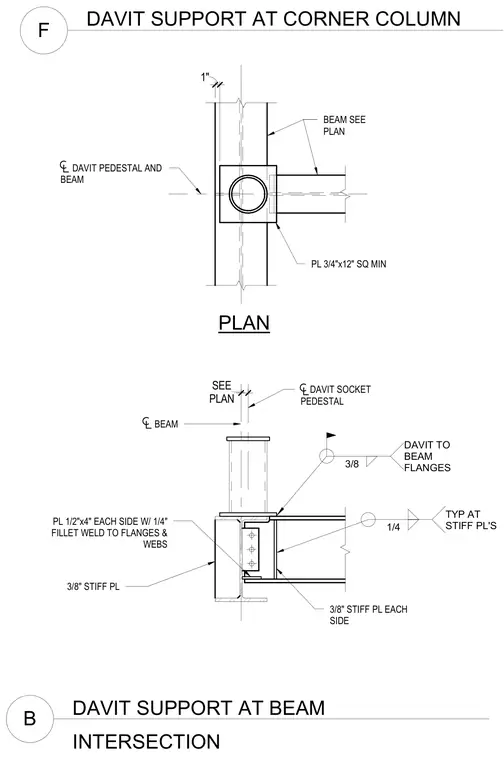

A davit socket pedestal is mounted to a structural steel beam intersection, supported by a 3/4-inch square minimum base plate welded to the beam flanges with a 3/8-inch fillet weld. Additional 3/8-inch stiffener plates are welded to each side of the beam web using 1/4-inch typical fillet welds. Plate connections measure 1/2-inch by 4-inch on each side with 1/4-inch fillet welds to the flanges and webs.
DAVIT SUPPORT AT BEAM B INTERSECTION PLAN 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PL 3/4"x12" SQ MIN DAVIT PEDESTAL AND BEAM BEAM SEE PLAN DAVIT SUPPORT AT CORNER COLUMN F PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S 1"
