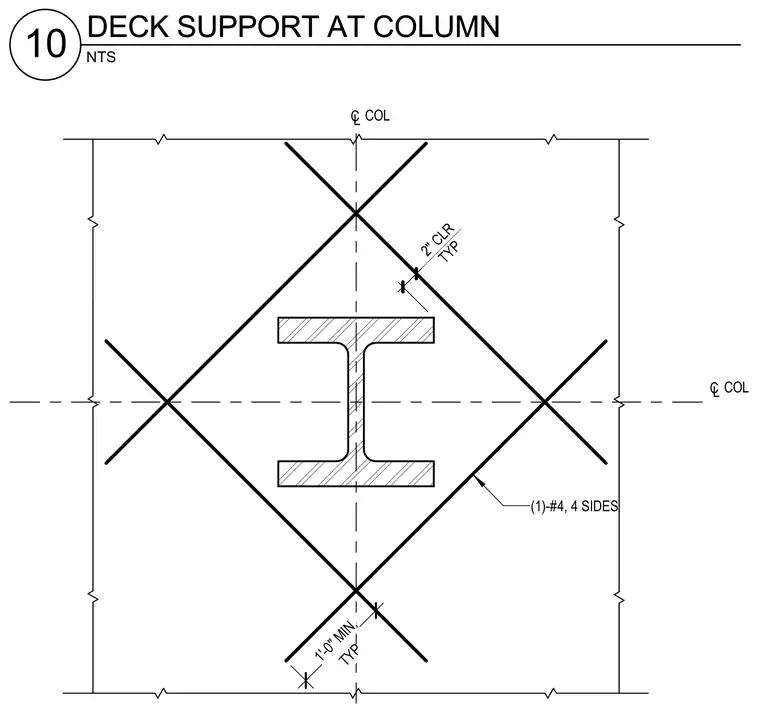

An interior steel column is surrounded by slab reinforcing bars placed with a typical two-inch clear cover. One number four reinforcing bar is positioned on each of the four sides of the column. A minimum one-foot typical dimension is maintained for the reinforcing layout from the column centerline.
2" CLR TYP (1)-#4, 4 SIDES 2" C L COL C L COL TYP 1'-0" MIN, NTS DECK SUPPORT AT COLUMN 10 DECK SUPPORT AT COLUMN
