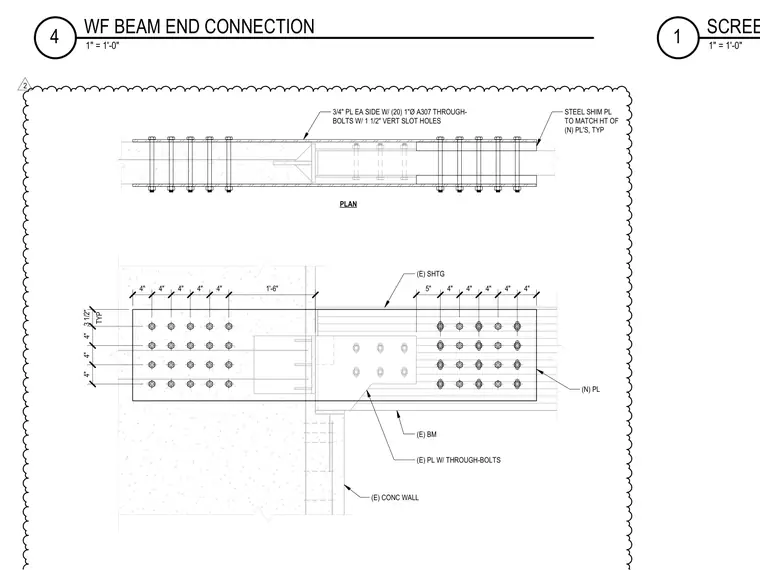

A wide flange beam end connects to an existing concrete wall using three-quarter inch steel plates on each side with twenty one-inch diameter A307 through-bolts featuring one and one-half inch vertical slot holes. Steel shim plates match the height of the new plates typically. Existing sheathing, an existing beam, and existing plates with through-bolts interface directly with the concrete wall assembly.
PLAN 3/4" PL EA SIDE W/ (20) 1"Ø A307 THROUGH- BOLTS W/ 1 1/2" VERT SLOT HOLES 5" 4" 4" 4" 4" 4" 4" 4" 4" 4" 4" 1'-6" 4" 4" 4" TYP 3 1/2" STEEL SHIM PL TO MATCH HT OF (N) PL'S, TYP (E) SHTG (N) PL (E) BM (E) PL W/ THROUGH-BOLTS (E) CONC WALL 1" = 1'-0" SCREEN ELEVATION 1 1" = 1'-0" WF BEAM END CONNECTION 4 2
