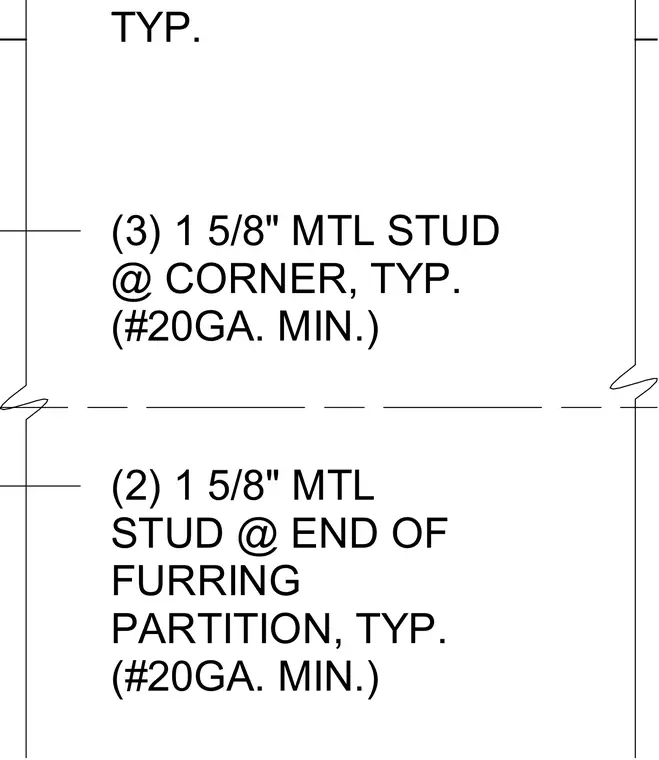

Metal stud framing assemblies for column furring and partition ends. The corner detail uses three one-and-five-eighths-inch metal studs with a minimum gauge of twenty. The partition end detail uses two one-and-five-eighths-inch metal studs with a minimum gauge of twenty. Corner beads are installed at the corners as typical conditions.
(2) 1 5/8" MTL STUD @ END OF FURRING PARTITION, TYP. (#20GA. MIN.) CORNER BEAD, TYP. (3) 1 5/8" MTL STUD @ CORNER, TYP. (#20GA. MIN.)
