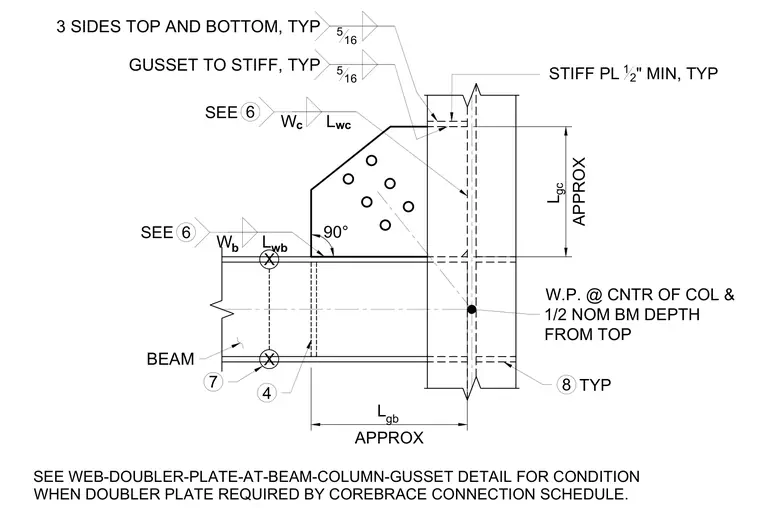

This connection detail shows a structural steel beam framing into a column with a bolted gusset plate for brace attachment. A minimum half-inch thick stiffener plate is welded to the column flange with five-sixteenths inch fillet welds on three sides top and bottom. The work point is located at the center of the column and half the nominal beam depth from the top. A web doubler plate is required per the corebrace connection schedule where indicated.
90° W b 6 SEE W.P. @ CNTR OF COL & 1/2 NOM BM DEPTH FROM TOP L gb APPROX BEAM L gc APPROX 4 X X 7 8 TYP GUSSET TO STIFF, TYP 6 SEE STIFF PL 12 " MIN, TYP 3 SIDES TOP AND BOTTOM, TYP 516 516 W c L wb L wc SEE WEB-DOUBLER-PLATE-AT-BEAM-COLUMN-GUSSET DETAIL FOR CONDITION WHEN DOUBLER PLATE REQUIRED BY COREBRACE CONNECTION SCHEDULE.
