Structural · S-2G6QH

Vertical Sign Support Connections

Materials

Steel

Elements

Beams Floors / Slabs Arches Anchors / Embeds Connections / Plates

Connections

HSS Connection Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

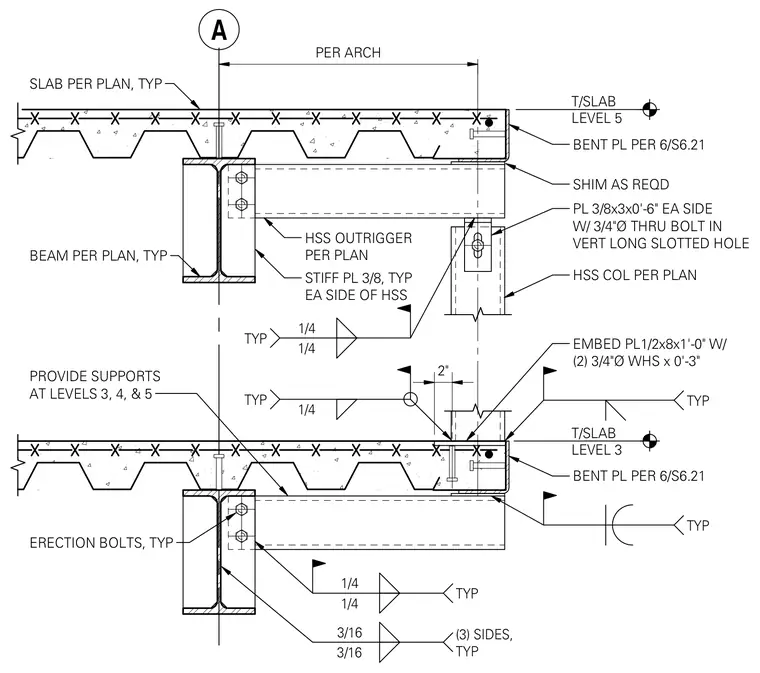

Vertical sign support connections anchor to concrete slabs on metal deck at levels 3, 4, and 5. Hollow structural section outriggers span from typical steel beams, reinforced with three-eighths-inch stiffener plates welded to each side of the hollow structural section with quarter-inch fillet welds. Hollow structural section columns tie back using three-eighths-by-three-inch by zero-foot-six-inch plates on each side, secured with three-quarter-inch diameter through-bolts in vertical long slotted holes and required shims. Embed plates measuring one-half-by-eight inches by one-foot-zero inches with two three-quarter-inch diameter welded headed studs provide anchorage into the slab edge, supplemented by typical bent plates.
